Reliable VCGX160404 160408 Carbide Insert Cutting Tools For Aluminum Alloys

Name: Reliable VCGX160404 160408 Carbide Insert Cutting Tools For Aluminum Alloys
Brand: HGalloytool
Price: 1 USD

Best Reliable VCGX160404 160408 Carbide Insert Cutting Tools For Aluminum Alloys wholesale

Brand Name : HGalloytool

Model Number : VCGX

Certification : ISO9001:2008

Place of Origin : Hunan, China (Mainland)

MOQ : 5 kg

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 Ton/Tons per Month

Delivery Time : 20~30 Days after Your Order Confirmed

Packaging Details : Shock Resistance Foam First in Plastic Box and Then Carton Boxes Outside.

Process Usage : Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools

Process Type : roughing,semi-finishing,finishing

Material : Tungsten carbide + cobalt

Product Name : Carbide CNC turning inserts

Hardness : HRC40-45

OEM/ODM : accepted

Surface : Coating or not

Contact Now

Reliable VCGX160404 160408 Carbide Insert Cutting Tools For Aluminum Alloys

Product Description

Model Number	VCGX
Procession Type	Aluminum/Wood/Copper
Usage	External Turning Tools

· for aluminum alloy cutting.

· Sharp tool nose due to large rake angle.

Features

1. Dimension accurate, durable and reliable performance;

2. High quality with competitive price;

3. Widely used in industry of metalworking machinery;

4. Long service life and high wear resistance;

5. Excellent edge strength.

Grade and Applications

ISO Code	Grand	Physical and mechanical properties			Applications recommended
ISO Code	Grand	Density g/cm³	Hardness HRA(HV)	TRS Mpa	Applications recommended
K05	YG3	15	90.5	1300	Suitable for finishing of cast iron and nonferrous metal.
K10	YG6X	14.8	91	1560	The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.
K10	YG6A	14.7	91.5	1510
K15	YG6	14.9	89.5	1670	Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
K20	YG8	14.6	89	1840	Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
M10	YW1	13	91	1290	Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel
	YW3	12.9	92	1390
	YW4	12.3	92	1390
M20	YW2	12.9	90.5	1460	The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.
P10	YT05	12.6	92.5	1260	Suitable for the finishing and semi-finishing if steel and cast steel with a moderate feed rate and a rather high cutting speed.
P10	YT15	11.3	91	1300
P20	YS14	11.4	91.5	1550	Suitable for the finishing and semi-finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel.
	YT14	11.4	90.5	1400
	YS25	13	90.5	1780
P30	YT5	12.8	89.5	1560	Suitable for the heavy duty rough turning of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions.

FAQ

Q1: Are you a factory or a trading company?

A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?

A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?

A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.

Q4:Do you have any test reports or certificates?

A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?

A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Reference Drawings

Reliable VCGX160404 160408 Carbide Insert Cutting Tools For Aluminum Alloys

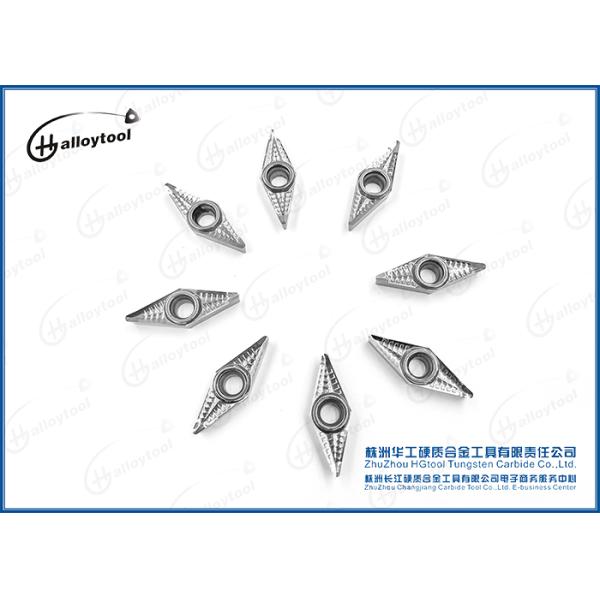

Product show

Reliable VCGX160404 160408 Carbide Insert Cutting Tools For Aluminum Alloys
